Lurie-Houghton Telescope Design
with a
Comparison to the Newtonian Telescope

by Rick Scott

Why should I build a telescope?

In the spring of 1999, I was reading the telescope design "bible", Telescope Optics by Harrie Rutten and Martin van Venrooij. I was reading it just to learn more about telescopes in general and about Schmidt Cassegrains in particular, because I own an old Celestron 8. In chapter 13, "Other Compound Systems", I read about a design known as the Lurie-Houghton. I found the design to be very intriguing because it seemed to offer an excellent balance between the various trade-offs that need to be made to achieve a great performing telescope. The authors had this to say about the design, "The Lurie instrument seems to be an almost ideal rich field telescope for the demanding amateur". The design they investigated in their book is an 8" f/4 system. After finishing the book, I kept re-reading the section on the Lurie-Houghton and comparing it to the other telescope designs in the book until I decided I needed to build one.

The same authors also wrote about this design in the ATM Journal, issue #1, Fall 1992. To derive the particular design I built, I used the optional software for their book as a starting point and fine tuned it using OSLO LT from Sinclair Optics. OSLO LT is a full blown optical design software tool that performs ray tracing and other optical analysis. Read my review of the program for more details.

The idea of building a telescope was not something I had contemplated before. This was a major decision for me, especially in light of the complexities of this particular telescope design. Most amateur astronomers and telescope makers use the Newtonian design, which is the simplest practical form of a reflecting telescope. Refer to the following drawing. The Newtonian telescope uses a paraboloidal mirror at the back end of the telescope tube to reflect and focus the light. A small mirror near the front of the tube and mounted at a 45 degree angle is used to direct the focused light sideways out of the tube to an eyepiece.

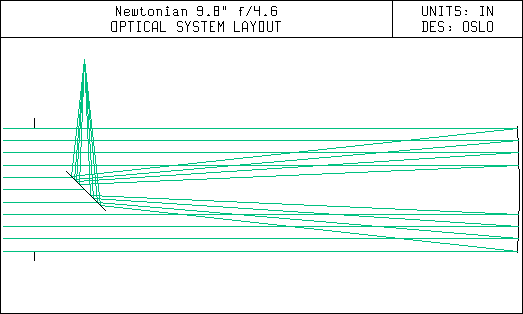

Optical path of the Newtonian telescope.

The Lurie-Houghton design uses a similar arrangement of mirrors except the main or primary mirror has a spheroidal surface instead of a paraboloid. Also, two full-aperture lenses are used at the front of the tube to correct for the aberrations due to the use of the spheroidal mirror. Refer to the following drawing. The two lenses together are referred to as the corrector lens or just the corrector. The addition of the corrector to the telescope adds the complexity of making two large lenses to the design.

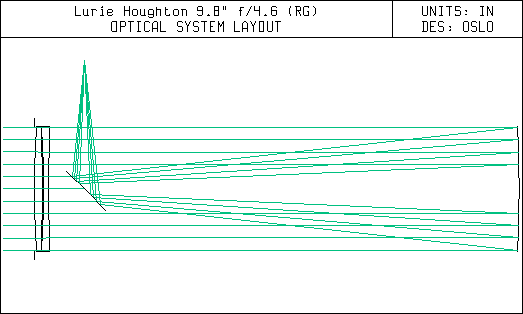

Optical path of the Lurie-Houghton telescope.

Why would anyone add this extra complexity (and cost) to a telescope?

I enjoy viewing the planets and other objects through my current telescope, but I really like to look at the various star clusters, nebulas and galaxies the sky has to offer. Many of these are larger than the field of view of the 8" f/10 Schmidt Cassegrain telescope I currently use. A short focal ratio Newtonian like a 10" f/4.5 would offer me wider fields of view, but the trade-off is higher distortion in the stars off axis. The corrector reduces the distortion to negligible levels. I also want to photograph through the telescope and the Newtonian has a curved focal (image) plane, but the Lurie-Houghton has an almost flat focal plane. More details with actual numbers are presented later in this article.

Another advantage of having the corrector lens is that it acts as an optical window at the front of the telescope. This controls the air currents in the telescope tube which reduces blurring and contrast reduction of the image. By closing off the tube, the mirrors and interior of the telescope also stay cleaner.

How big should it be?

The aperture and focal ratio of all telescopes are compromises determined by factors such as cost, weight, size as much as desired optical performance. The telescope I've been using so far is an old Celestron 8 from the early 1970's (Celestron Pacific) that has an 8" aperture. It has been fine from the viewpoint of aperture size, but I wanted something a little bigger. I do have to transport the scope around and a 10" mirror would be reasonable to move. The effect on the image by atmospheric turbulence is also affected by the size of the aperture. As the aperture increases, so does the effects of the atmosphere. My research indicated that a scope around 8" to 10" is at the transition region where the image changes from moving around with some blurring to just becoming blurry, so 10" is the aperture I settled on.

The next decision is the focal ratio which determines the focal length of the telescope. The design that Rutten and Venrooij analyzed is an 8" f/4. If I scaled their design, I would have a 10" f/4 which has a focal length of 40". My Celestron 8 has a focal length of 80". This is great for planetary viewing, because it doesn't require extremely short focal length eyepieces for decent views. A 40" focal length would require eyepieces with half the focal length for the same size image. If I made a Lurie-Houghton with an 80" focal length, I would end up with fields of view not larger than my Celestron offers, so I settled on a compromise of 45". This is a very common focal length in amateur telescope, as seen by the large proliferation of 10" f/4.5 telescope in the market. I still need a shorter focal length eyepiece than I currently have or I can use a Barlow lens to magnify the image for planetary work. With my 2" barrel 22mm Type 4 TeleVue eyepiece, my Lurie-Houghton telescope gives me a 1.55 degree field of view. This allows me to get the Lagoon and Trifid nebulas in the same field and wonderful views of the Orion nebula.

What are the details of this Lurie-Houghton telescope?

The following table contains the design parameters for my implementation of the Lurie-Houghton telescope. The parameters for my original design and for the telescope as it actually ended up being built are shown.

Description Original
Design
As Built
First corrector lens (positive, BK-7 glass)
(D = 10in, stopped down to 9.8in)
R1 = 72.6in
T1 = 0.608in
R2 = -208.0in
R1 = 72.18in
T1 = 0.7052in
R2 = -202.2in
Air space between corrector lenses T2 = 0.11in

T2 = 0.116in

Second corrector lens (negative, BK-7 glass)
(D = 10in, stopped down to 9.8in)
R3 = -72.6in
T3 = 0.375in
R4 = 208.0in

R3 = -72.45in
T3 = 0.456in
R4 = 199.50in

Air space between corrector and primary mirror T4 = 37.5in

T4 = 37.0in

Spherical primary mirror (Astrositall)
(D = 10in)
R5 =-89.764in

R5 =-90.43in

Air space between primary and secondary mirror T5 = -34.6in

T5 = -35.1in

Flat diagonal mirror (D = 3.1in) R6 = 0

R6 = 0

Distance from optical axis to focal plane T6 = 10.217in

T6 = 10.058in

Radius of curvature of focal plane R7 = 149in R7 = 136in

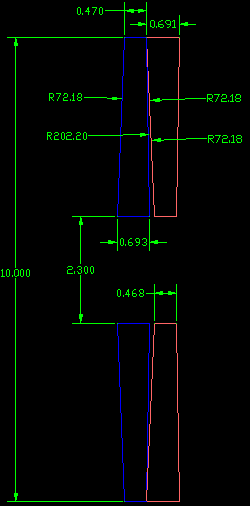

This drawing shows the details for the corrector lenses. I'm using AutoCAD Release 14 for all of the design drawings. Besides 2D drawings, I'm also modeling all of the parts using 3D solids. By doing this I can see how the parts fit together and it allows me to create 3D renderings as shown later in this article.

How does the Lurie-Houghton compare to an equivalent Newtonian?

The following figures compare the performance of the Lurie-Houghton telescope I designed to a Newtonian telescope with the same aperture and focal ratio.

The spot diagrams

This first set of diagrams are spot diagrams. They show how the light is focused. The small black circle in the center of the spot diagrams represent the diffraction limit for a 9.8" aperture. It is the same size as the airy disc seen using a high power eyepiece. Ideally, all the light entering the telescope should focus within the diffraction limit. This is referred to as being diffraction limited. Most commercial telescope vendors will state their telescopes are diffraction limited, but they don't state over what field of view.

The spreading of the light in the Newtonian is mostly due to coma, but there is also some astigmatism. The corrector in the Lurie-Houghton eliminates the coma but leaves some astigmatism that is seen as spreading of the light bundle. Since the Newtonian uses only mirrors and no lenses it doesn't have any chromatic (color) aberrations. That's why the spot diagrams don't show any color effects. Note the scale change for the wider fields in the spot diagrams for the Newtonian. The coma is so bad that a large percentage of the light is far outside of the diffraction limit.



Spot Diagram On-Axis (zero offset)



Spot Diagram 0.0417 Degrees Off-Axis (5 arc-min FOV)



Spot Diagram 0.3 Degrees Off-Axis (36 arc-min FOV)



Spot Diagram 0.6 Degrees Off-Axis (72 arc-min FOV)

The modulation transfer curves

This second set of diagrams are the Modulation Transfer (MTF) curves. They show how the image contrast is affected by aberrations in the optical system. Each of these graphs have a line that shows the upper limit or maximum contrast possible for a given telescope design. The limit is set by the aperture size and amount of central obstruction due to the secondary mirror.

Notice in the MTF curves that the Newtonian with a 5 arc-minute field of view has almost the same amount of contrast degradation as the Lurie-Houghton with a 72 arc-minute or 1.2 degree field of view. The Lurie-Houghton provides a field of view over 14 times wider with the same amount of contrast reduction! Also, the spot diagrams show that the star images away from the center of view will be sharper and brighter in the Lurie-Houghton, because the light is still concentrated within the diffraction limited airy disc.



Modulation Transfer Function On-Axis (zero offset)



Modulation Transfer Function 0.0417 Degrees Off-Axis (5 arc-min FOV)



Modulation Transfer Function 0.3 Degrees Off-Axis (36 arc-min FOV)



Modulation Transfer Function 0.6 Degrees Off-Axis (72 arc-min FOV)

How does the central obstruction affect the contrast?

The central obstruction that is normally present in reflecting type telescope is there because some type of mirror is needed to reflect the light from the primary mirror to the eyepiece. Because the mirror focuses the light back along its central axis, the secondary mirror must be on that axis, causing it to block the central portion of the light path. If the secondary mirror is no larger than 20 percent of the diameter of the telescope aperture, it causes virtually no degradation to the contrast of the image. Using OSLO LT, I compared the on-axis modulation transfer curve of my Lurie-Houghton telescope to an ideal lens with the same focal length and no central obstruction. I also analyzed different size ideal lenses of the same focal length as my Lurie-Houghton to find the ideal unobstructed telescope that gave the same contrast performance.

By performing this exercise, I was able to find the aperture of an ideal telescope, if such a thing could be built, that would give equivalent contrast on objects such as the planets. I did this because in the telescope world, there is the equivalent of a Macintosh vs. PC battle. In this case, the battle is between refracting (unobstructed) and reflecting (obstructed) telescopes. The refracting camp states that no amount of obstruction is tolerable. The results of my analysis, seen in the following figure, shows that an ideal (no aberrations) telescope with no obstruction and a 6.6" aperture would have the same contrast as my telescope for medium resolutions (ie. planetary observing). The graph also shows that the larger aperture with obstruction (in this case 31.6%) has much better contrast at higher resolutions. This is great for observing double stars and various star clusters where the stars are visually very close together.

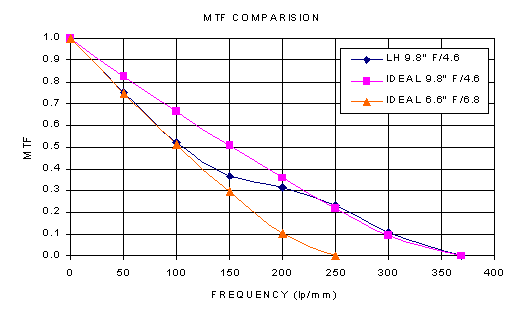

Contrast comparison to two ideal telescopes

People pay exuberant prices for excellent refractors with an aperture in this size range. Most reflectors cost much less per inch of aperture than refractors, so a reflecting telescope with more aperture and a reasonable amount of central obstruction can have the same or better planetary views along with much better resolution. A 9.8" telescope with a 3.1" central obstruction also has twice the light collecting area than the unobstructed 6.6" aperture, so it can show the observer objects that are half as bright. In terms of astronomical magnitudes (brightness scale), the larger telescope can see objects about 0.75 magnitudes dimmer with the same or better contrast and higher resolution for less money. Think about it, which would you buy?

How about some pretty pictures?

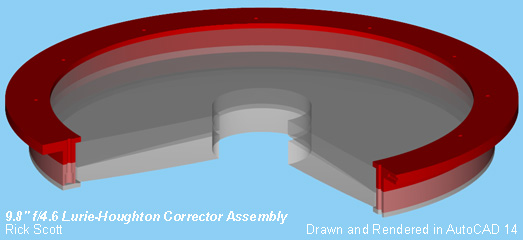

Here is a 3D rendering of the corrector lens cell with the two lenses in it. I made this rendering in AutoCAD by making 3D solid models of the parts and assigning colors or material properties to each of them. I removed a quarter section to make the construction clearly visible. The side visible in this drawing is the side facing the primary mirror.

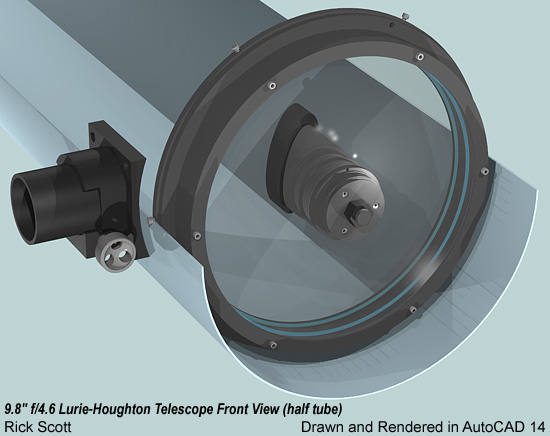

This rendering shows the front of the telescope with half of the tube removed. The secondary mirror assembly is attached through the center hole of the first corrector lens. On the lenses, you can see the reflections of a small light source I placed close to the front of them to add some highlighting to the rendering. You can also see various shadows cast by telescope parts from the many light sources used to make the rendering.

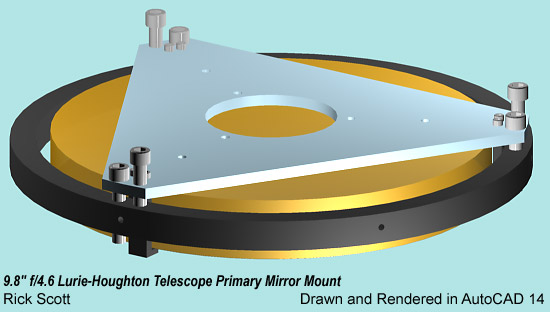

The next rendering shows the details for the primary mirror mount. The mount is basically two pieces, the yoke (triangular plate) that the mirror is bonded to with silicone adhesive, and the ring that is used to attach the assembly to the telescope tube. The push-pull bolt arrangement at each corner of the yoke are used to adjust the collimation of the primary mirror. Also visible are two of the "L" shaped safety brackets used to restrain the mirror if the silicone adhesive should fail.

I looked at many mirror mounts used in other telescopes and found that they all wasted an excessive amount of space behind the mirror. One of my design goals was to have the tube be no longer than necessary, so I designed this mount to be as frugal as possible with the space behind it. In practice, this mount design has worked very well. It is easy to adjust the collimation and it doesn't change at all with transportation in my car. I highly recommend this simple design to other telescope makers.
